Aereo radiocomandato elettrico Spitfire PNP 1,6m ARF

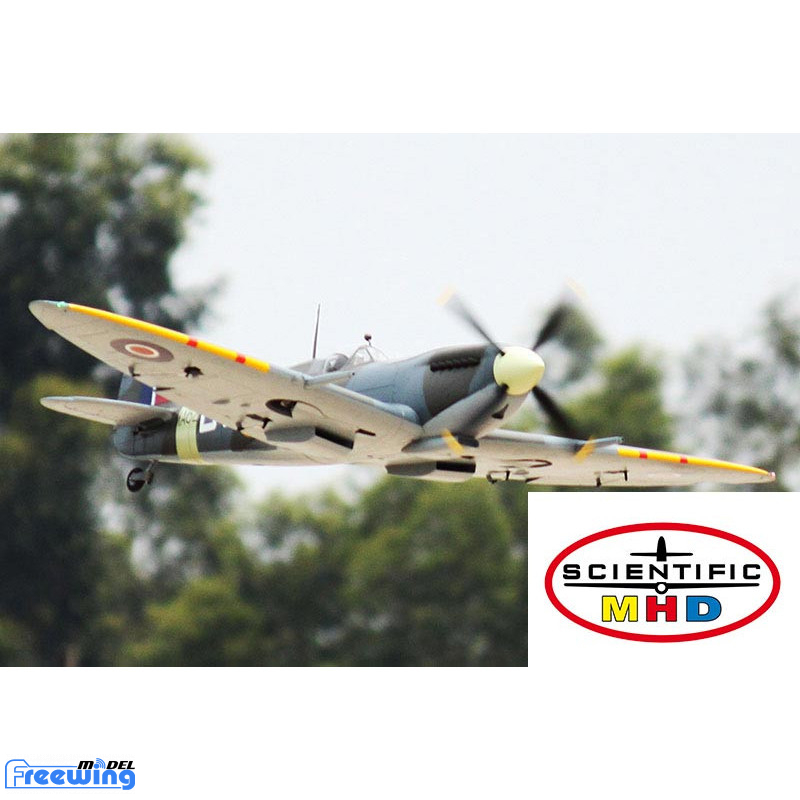

Spitfire Mk.IXc FlightLine RC 1600mm: a 1/7 scale model.

Following numerous customer requests, FlightLine RC decided to enlarge its famous 1200mm Spitfire to create an improved version, with a wingspan of 1600mm, corresponding to a 1/7 scale. This model stands out for its scale model level of detail, expected in this size category, and its meticulous design.

Superior quality design

The Spitfire is made of EPO foam, offering scale-accurate shapes and a smooth surface. The main wing combines hollow foam parts with a plywood and carbon fiber frame, ensuring better strength and reduced weight compared to a solid foam wing. The wing and stabilizer are detachable and secured with screws, making transportation of the model easier.

To enhance durability and performance, airflow is integrated into the fuselage, allowing efficient ventilation of electronic equipment. Battery access is through a removable cockpit, while a removable plywood plate provides convenient access to the ricevente and the location for an optional flight gyro stabilizer, located near the center of gravity (CG).

Impressive performance

The Spitfire Mk.IXc is equipped with a brushless Out-Runner 5055-390KV motor, an 80A controller, and a four-blade propeller. Paired with a 4000-5000mAh 6S LiPo battery, it reaches a top speed of 125 km/h, while offering high vertical power and a flight autonomy of 6 to 10 minutes depending on throttle management.

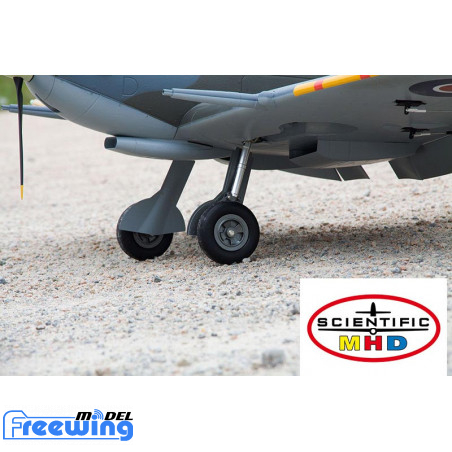

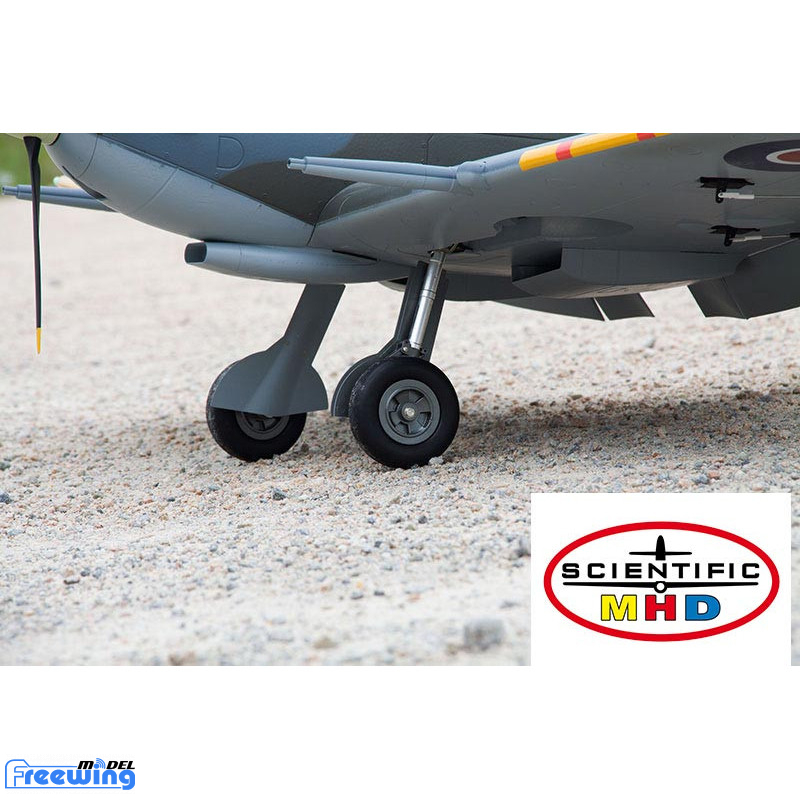

Its landing gear, with suspended legs and 85mm wheels on 5mm axles, along with a 45mm tail wheel, allows for easy takeoffs and landings, even on grass runways.

Flight characteristics and accessibility

Optimized for exceptional performance, this Spitfire is perfect for intermediate and experienced pilots. Its flight behavior is predictable, especially during stalls, and the available power allows for easy recovery in all configurations.

Equipped with "Day-Bright" LEDs, the model ensures good visibility in all circumstances.

Fully painted, the Spitfire Mk.IXc FlightLine RC 1600mm combines aesthetics, performance, and practicality for an unparalleled flying experience.

This version restructures the content for better readability and a more logical flow of information.

Technical specifications of the Spitfire Mk.IXc FlightLine RC at 1/7 scale.

• Wingspan: 1.6m

• Length: 1.35m

• Material: EPO foam

• Motor: Brushless 5055-390Kv outrunner installed

• ESC: 80A Brushless installed

• Servos: 17g digital installed

• Landing gear: Electric retractable already installed

Punti di forza del Spitfire Mk.IXc FlightLine RC  in scala 1/7

• Carrello d'atterraggio con asse in acciaio da 5 mm di spessore e corpo in metallo.

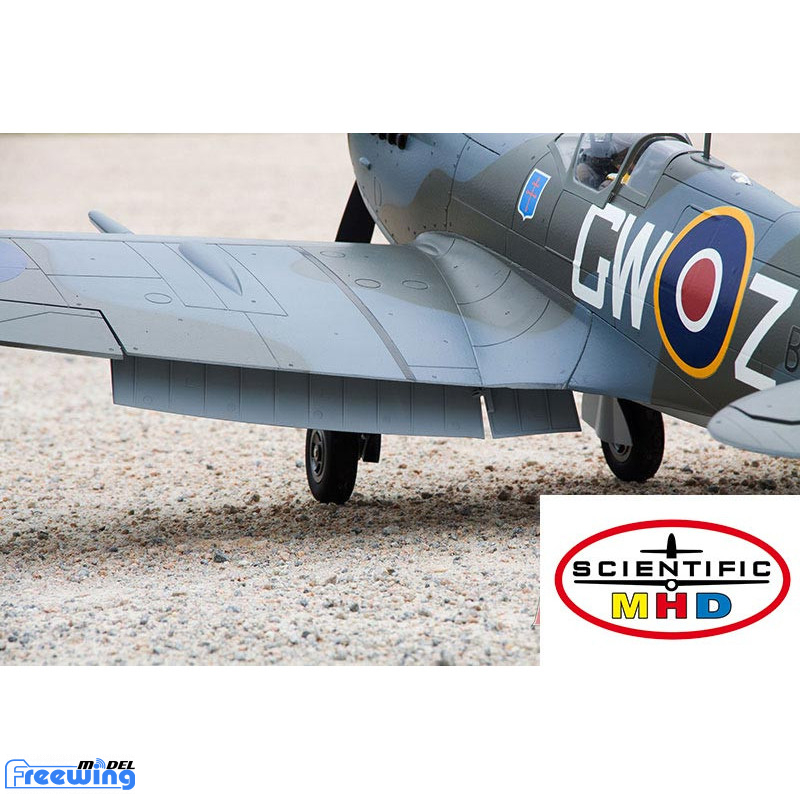

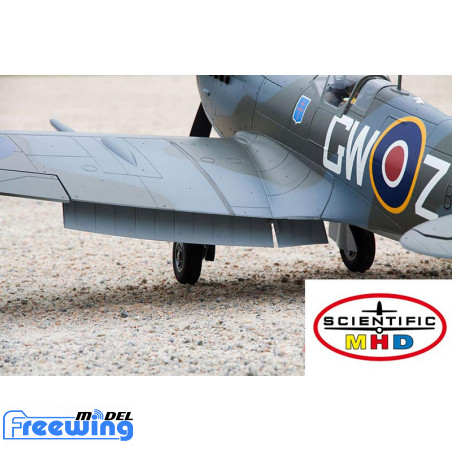

• Flap a quattro pannelli realistici

• Grande elica quadripala 16x10

• Motore brushless incluso

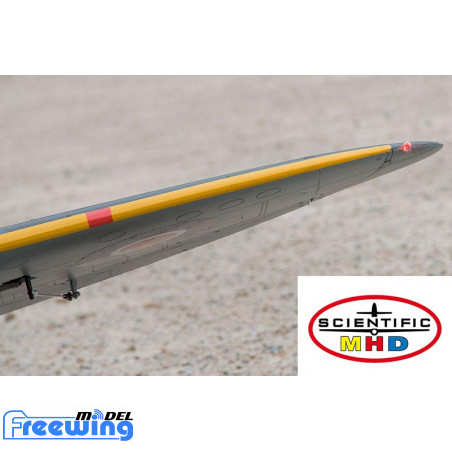

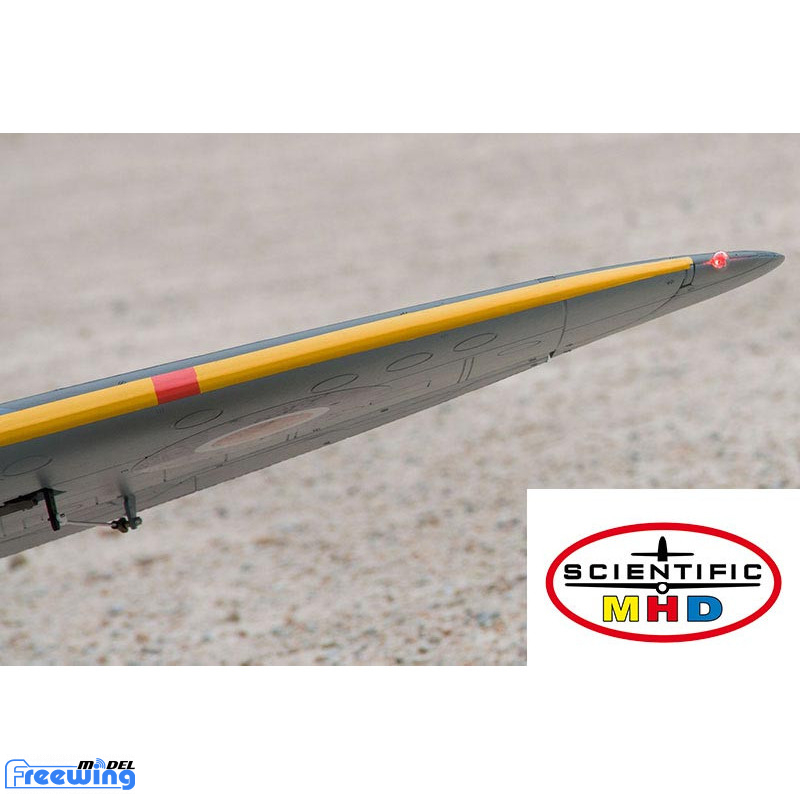

• Luci di navigazione e luce di segnalazione dorsale a LED

• Cerniere in nylon su tutti i comandi

• Ali, cannone e antenna rimovibili per facilitare il trasporto.

• Punti di accesso per regolare i tiranti del timone di profondità e del timone di direzione senza rimuovere l'ala.

• Piastra in compensato vicino alla posizione del CG prevista per ricevere un giroscopio

Due set di decalcomanie inclusi:

Per personalizzare la tua versione, nel kit sono incluse due opzioni di decorazione, una rappresenta l'aereo del comandante di squadriglia F.A.O. Tony Gaze (MA621 DV-A)

e l'altra quella del tenente Michel Boudier (BS393 GW-Z).

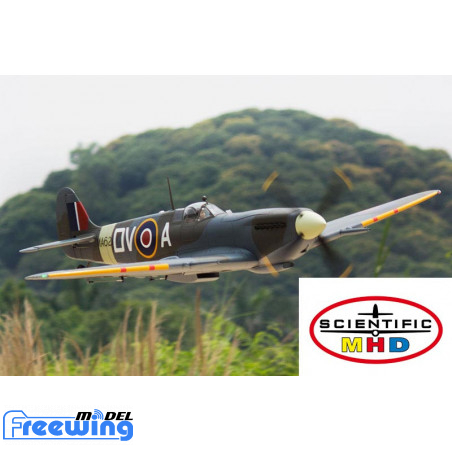

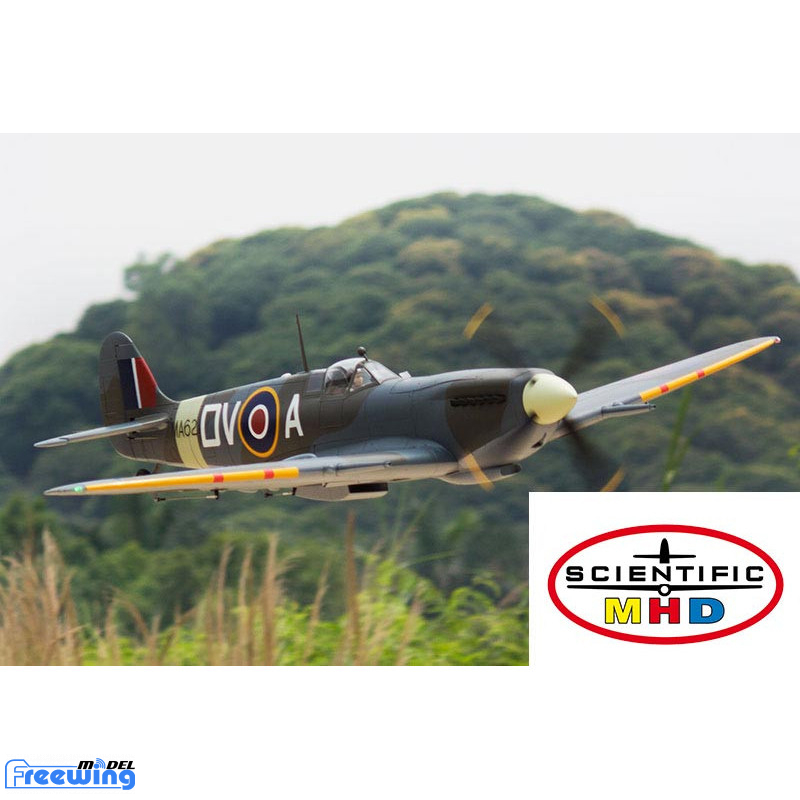

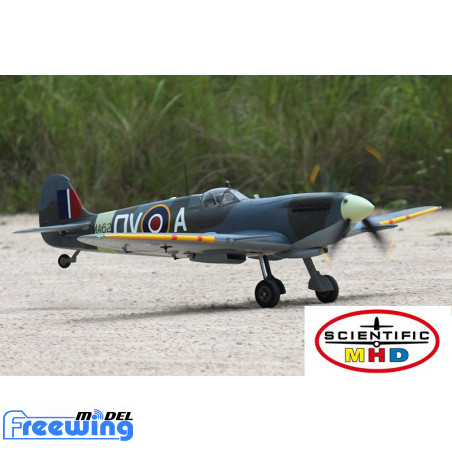

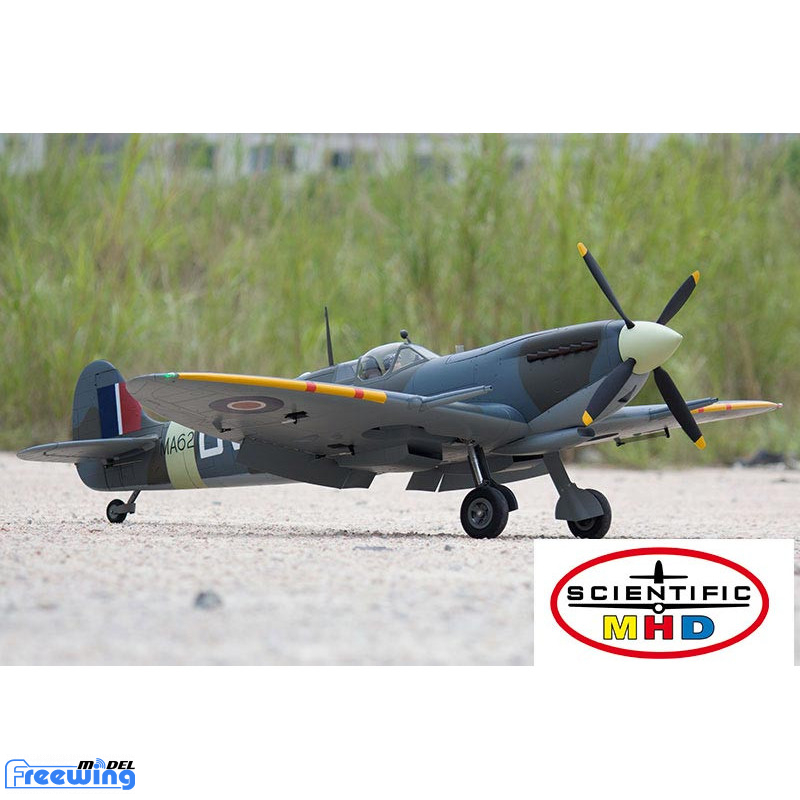

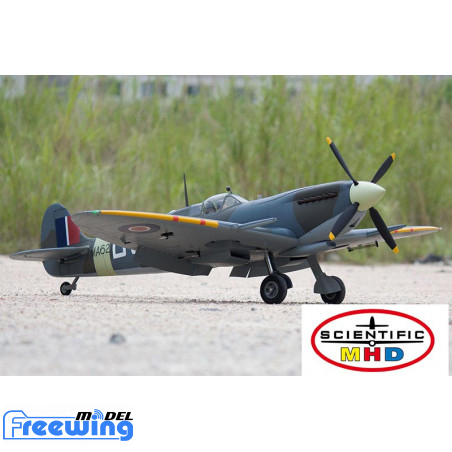

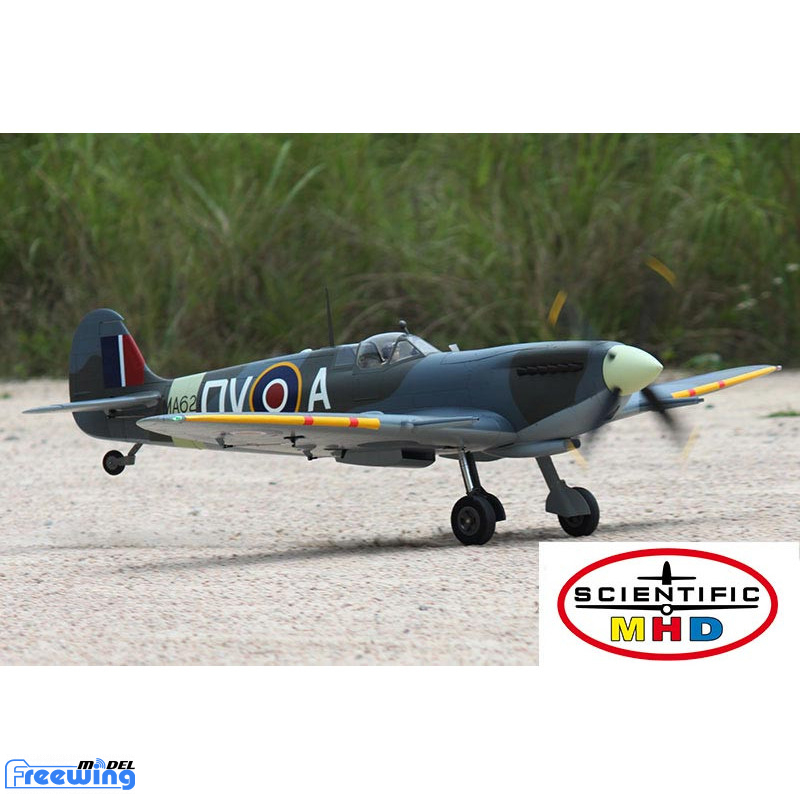

MA621 DV-A, comandante di squadriglia Tony Gaze, 129° squadriglia, 1943

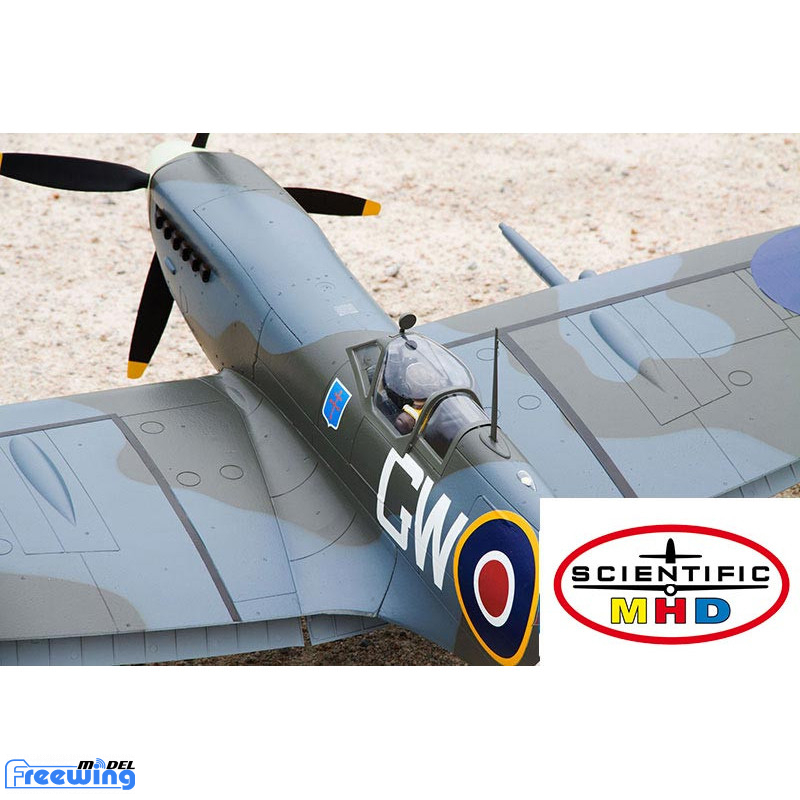

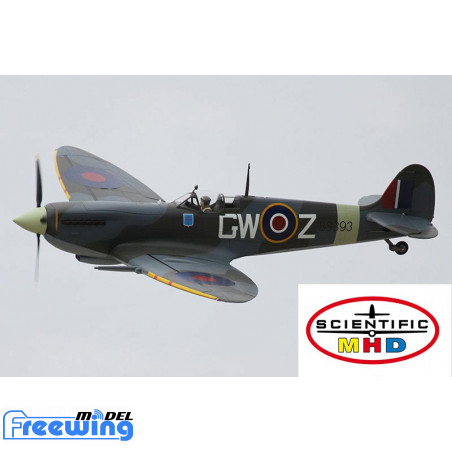

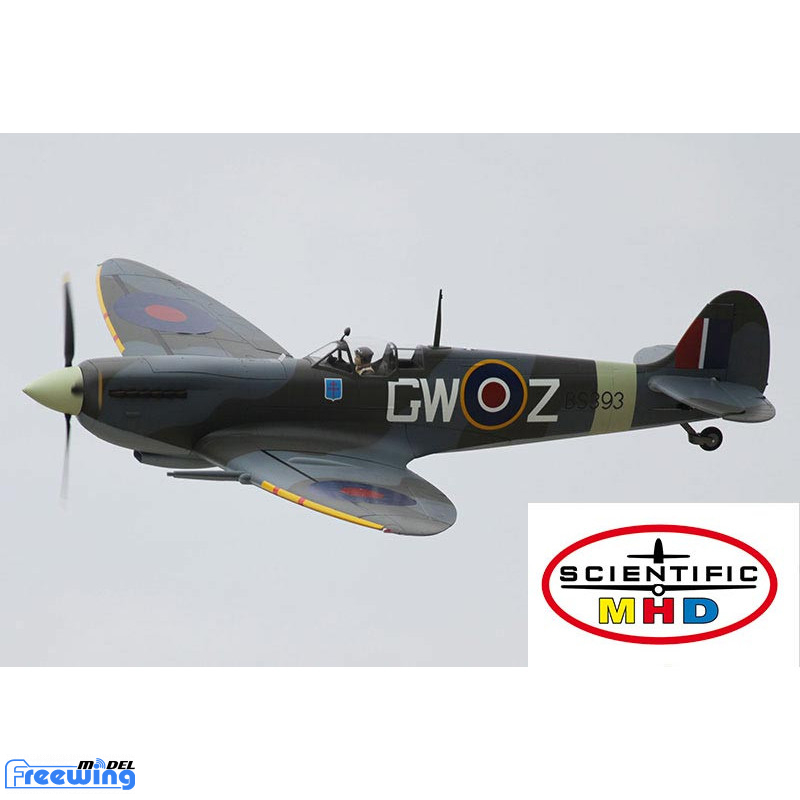

BS393 GW-Z per il tenente Michel Boudier, 340° squadriglia, 1942.

Elementi richiesti :

• Radio 6 canali minimo con ricevente

• Batteria LiPo 6 S 22.2V 4000mAh a 5000mAh con connettore EC5

• Caricabatterie compatibile con la batteria
